Dual-silver magnetron sputtering series

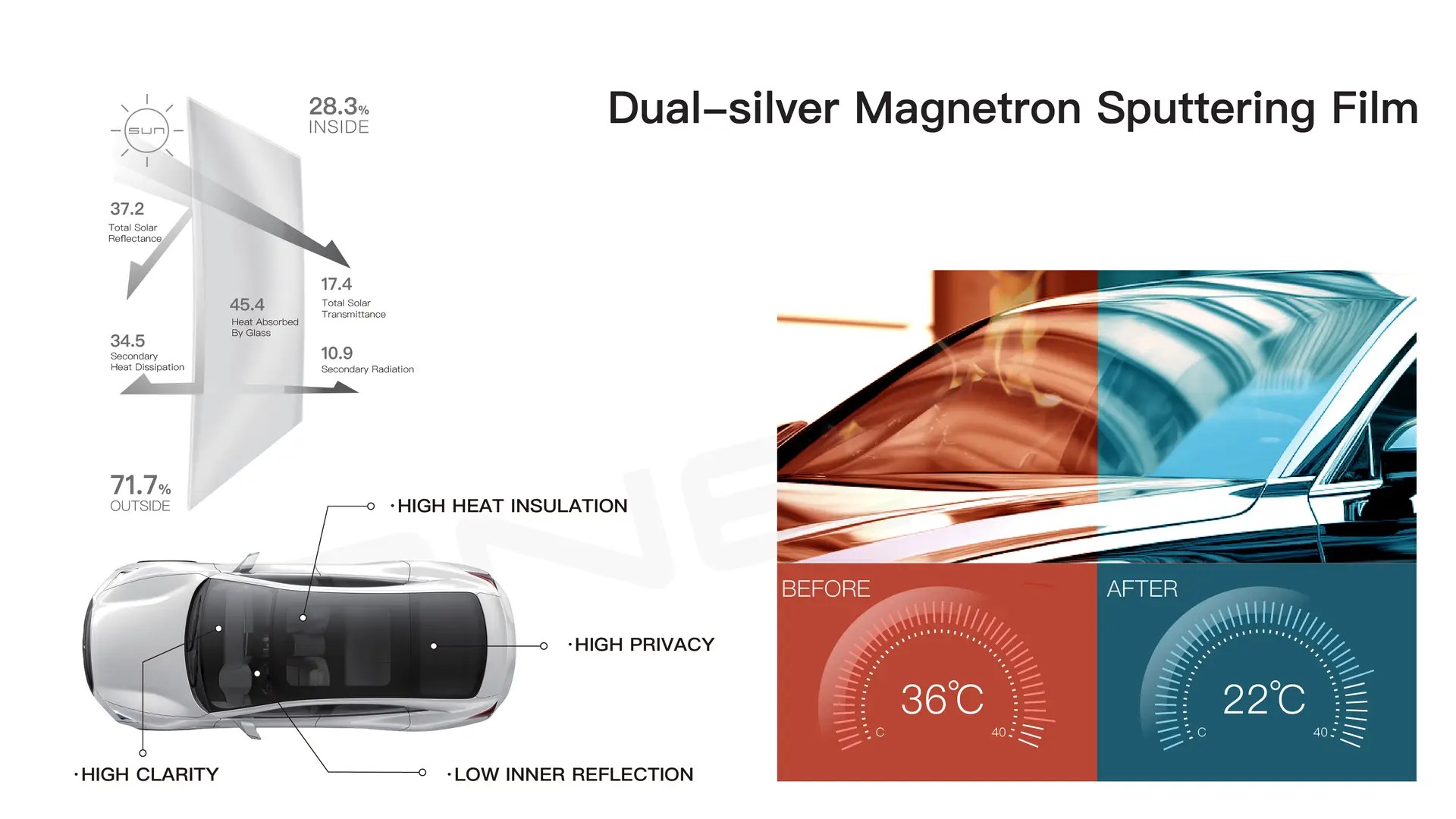

·High heat-insulation ·High clarity ·High privacy ·Low inner reflection

The Dual-Silver Magnetron Sputtering Series offers advanced metalized windshield technology designed to enhance vehicle performance and comfort. This innovative process ensures high heat insulation and clarity, while providing superior privacy without compromising visibility. Unlike traditional dyed films that absorb thermal energy, our metallized window tint effectively reflects heat, minimizing inner reflection for an optimal driving experience.

Weight	10 kg
Dimensions	160 × 18 × 18 cm
Model	S70 , S35 , S15 , S05

Add to compare

3402 People watching this product now!

SKU: N/A Categories: All, Window Film Tag: Flagship product

• Lower interior reflectivity provides clearer vision and reduces visual fatigue, especially at night.

• Up to 99% UV blocking, effectively reducing the damage of sunlight to car interiors and human skin. Blocks up to 70% of the total amount of solar energy, which can always keep you cool at all times.

• Darkest product can block 95% of visible light, effectively prevent prying eyes, and better protect your items in the car; Ultra-low haze (<1), you can still see clearly from the inside out after applying such a dark window film.

Basic info
Material	Color	Thickness	Size	Product usage	Interior/Exterior	Warranty
PET	Black	3 mil	1.52 x 30.5 m/roll	Vehicles, Sunroofs	Interior	10 years
Application	Heat Rejecting, IR Blocking, IR Reflecting, Light Blocking, Solar Energy Blocking, Cooling, Enhancing Solar Performance, Fade Reducing, Glare Reducing, UV Rejecting, Solar Heat Reducing

Specification

S70

UV:99 VL:72 IR:85

PRODUCT PROPERTIES	TEST VALUE	PRODUCT PROPERTIES	TEST VALUE
Visible Light Transmittance	76.6%	Total Solar Energy Rejected	55.3%
PSA Visible Light Reflectance	9.5%	UV Radiation Rejection	99.8%
SR Visible Light Reflectance	9.3%	Shading Coefficient	0.5%
Total Solar Transmittance	39.6%	Haze	<1
Total Solar Reflectance	39.3%	Thickness of film	3.5 mil

S35

UV:99 VL:35 IR:85

PRODUCT PROPERTIES	TEST VALUE	PRODUCT PROPERTIES	TEST VALUE
Visible Light Transmittance	38.5%	Total Solar Energy Rejected	65.5%
PSA Visible Light Reflectance	7.5%	UV Radiation Rejection	100%
SR Visible Light Reflectance	8.6%	Shading Coefficient	0.39%
Total Solar Transmittance	25.8%	Haze	<1
Total Solar Reflectance	38.0%	Thickness of film	3 mil

S15

UV:99 VL:15 IR:85

PRODUCT PROPERTIES	TEST VALUE	PRODUCT PROPERTIES	TEST VALUE
Visible Light Transmittance	18%	Total Solar Energy Rejected	71.7%
PSA Visible Light Reflectance	6.1%	UV Radiation Rejection	100%
SR Visible Light Reflectance	7.7%	Shading Coefficient	0.32%
Total Solar Transmittance	17.4%	Haze	<1
Total Solar Reflectance	37.2%	Thickness of film	3 mil

S05

UV:99 VL:05 IR:85

PRODUCT PROPERTIES	TEST VALUE	PRODUCT PROPERTIES	TEST VALUE
Visible Light Transmittance	7.7%	Total Solar Energy Rejected	74.2%
PSA Visible Light Reflectance	5.4%	UV Radiation Rejection	100%
SR Visible Light Reflectance	7.3%	Shading Coefficient	0.29%
Total Solar Transmittance	13.9%	Haze	<1
Total Solar Reflectance	36.4%	Thickness of film	3 mil

Application

Product & Package
